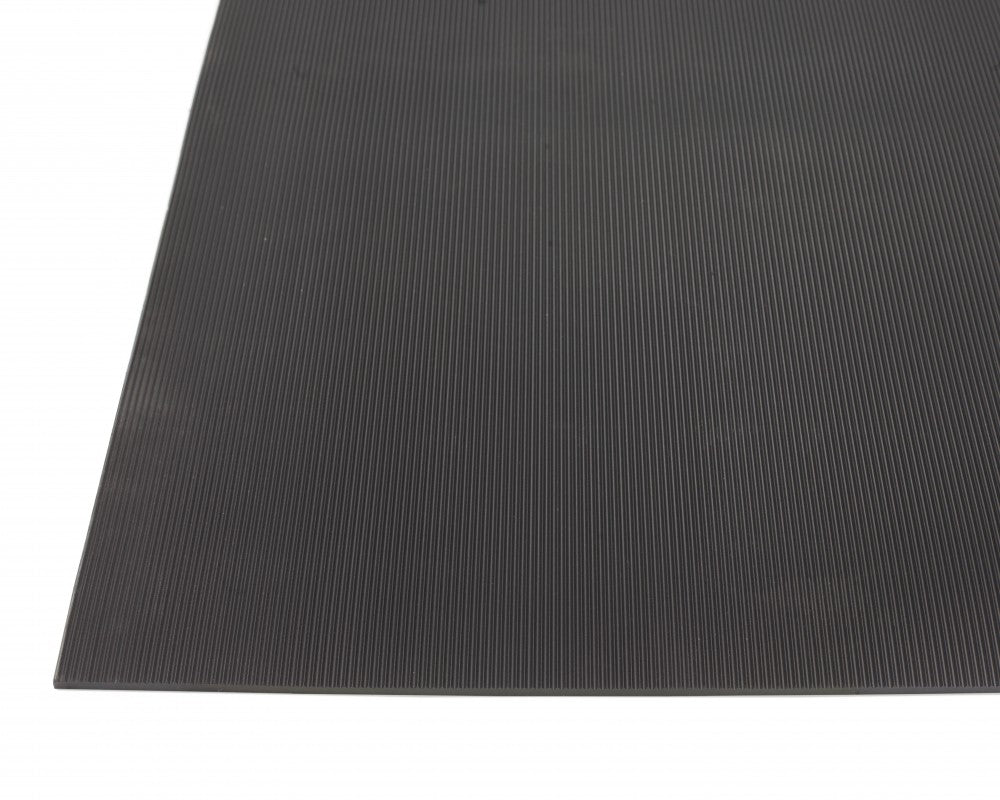

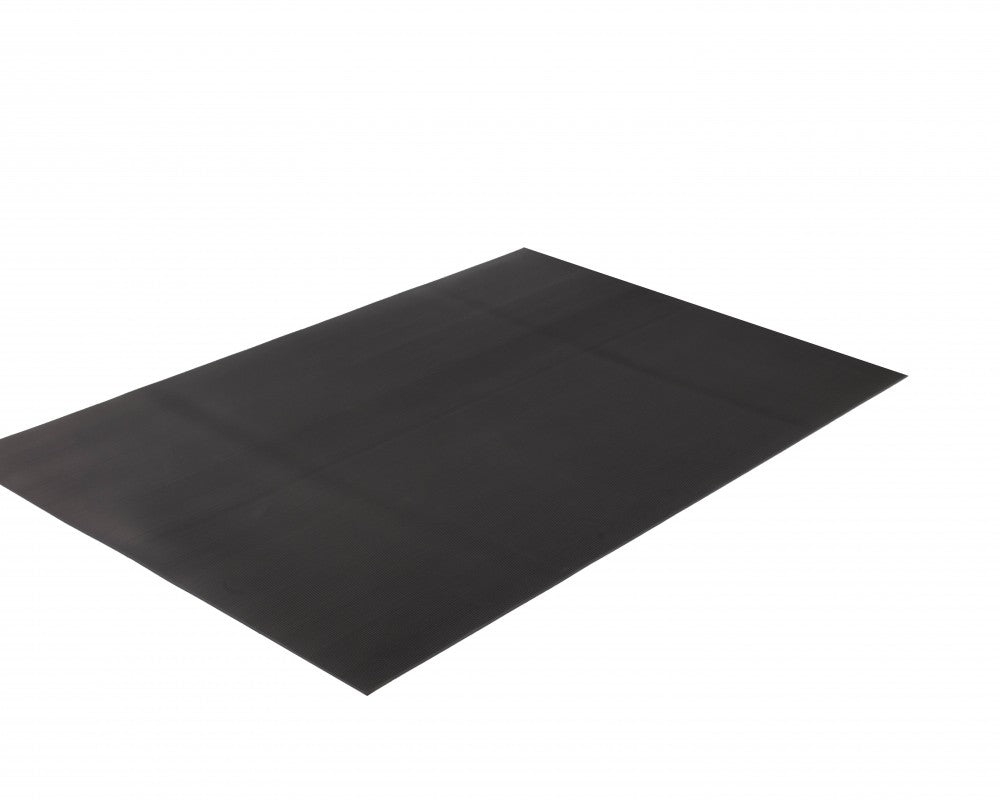

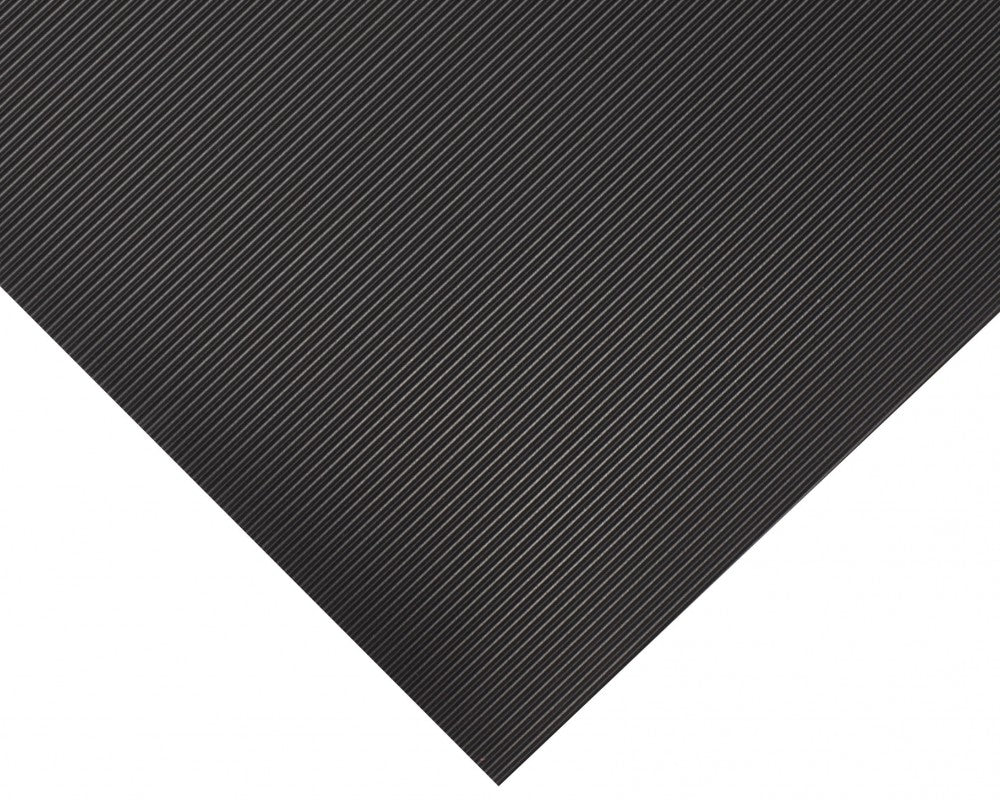

Electrical Safety Mat – Class 2 Switchboard Insulating Mat – Switchboard Class 2

Class 2 electrical safety mats are designed to help protect workers from electrical shock when working near switchboards, electrical panels, and high-voltage equipment. These non-conductive insulating mats create a protective barrier between personnel and grounded surfaces in electrical maintenance environments.

Manufactured from durable insulating rubber, this switchboard safety mat features a ribbed anti-slip surface that improves traction while helping keep work areas safer. The mat conforms to industry standards for dielectric switchboard matting used in electrical rooms and control areas.

Key Benefits

• Non-conductive insulating surface designed for electrical safety
• Class 2 dielectric protection for high-voltage environments
• Ribbed anti-slip surface improves traction in work areas
• Durable rubber construction built for industrial environments
• Helps protect workers when servicing switchboards and electrical panels

Ideal Applications

• Electrical switchboards
• Control panels
• Electrical rooms
• Transformer stations
• Power distribution equipment
• Maintenance work areas

Specifications

• Material: Insulating rubber
• Surface: Ribbed anti-slip pattern
• Classification: Class 2 electrical insulating mat
• Dielectric Test Voltage: Approximately 30,000 VAC
• Maximum Recommended Use Voltage: Up to approximately 17,000 VAC
• Standard: ASTM D178 switchboard matting
• Application: Electrical safety and shock protection
